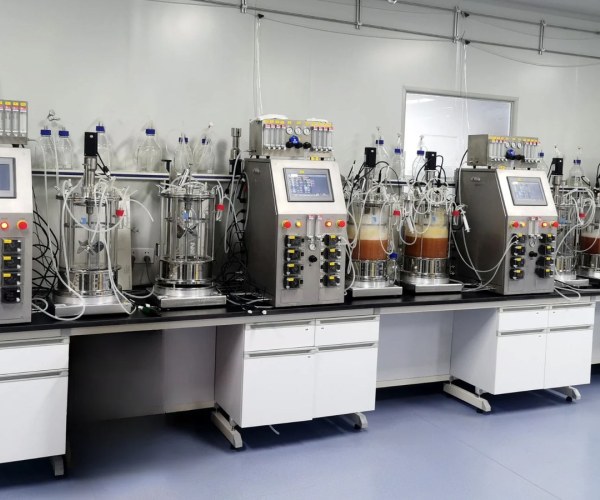

BAILUN Benchtop Dual-Tank Bioreactor System for Parallel Cell Culture Fermentation 0.25L-10L
| Share | |
|---|---|
| Categories | Small Scale Methanol Plant For Laboratory Multi Bioreactor Pressure Fermentation |
| Brand | BAILUN bio Bioreactor and Fermenter Manufacturer |
| Model | BL-DTB-0.25-10L |
| Configuration | Dual-tank (duplex), parallel or independent |
| Working Volume | 0.25 L to 10 L per vessel |
| Material | Stainless steel / borosilicate glass vessel |
| Control | Color touchscreen HMI, pH/DO/temp/agitation |
| Download |  |
Two Vessels. One Platform. Total Flexibility.
The BAILUN benchtop dual-tank bioreactor is a compact, modular fermentation system designed to deliver maximum flexibility in cell culture and microbial processes. Two independently controlled vessels operate in parallel or separately, enabling side-by-side comparison of strains, media, and feeding strategies while shortening development timelines.
Integrated monitoring and control of pH, dissolved oxygen (DO), temperature, and agitation, combined with peristaltic dosing pumps and a color touchscreen HMI, give operators precise and reproducible conditions for every run. Working volumes from 0.25 L to 10 L make the system equally suited to early screening and pilot-scale optimization.
Parallel fermentation in a compact benchtop footprint
Engineered for Reproducible Bioprocess R&D
Dual-Tank Parallel Operation
Two independently controlled vessels run side-by-side for direct comparison of strains, media, and process conditions in a single experiment.
Wide Agitation Range
Stirring from 50 to 2000 rpm with ±1 rpm accuracy delivers efficient, reproducible mixing across microbial and cell culture applications.
Precise Temperature Control
Temperature stability within ±0.1 °C keeps culture conditions consistent and supports reliable scale-up decisions.
Integrated pH, DO, and Agitation Control
Closed-loop monitoring and control of pH, dissolved oxygen, temperature, and agitation in each vessel for stable, repeatable runs.
Peristaltic Dosing System
Four peristaltic pumps per vessel for accurate addition of acid, base, antifoam, and feed media without cross-contamination.
Flexible Working Volumes
Working volume range from 0.25 L to 10 L per vessel supports early-stage screening through pilot-scale process optimization.
Modular and Configurable
Modular architecture adapts the platform to bacterial, yeast, fungal, plant cell, and mammalian cell culture workflows.
Color Touchscreen with Data Logging
Intuitive color HMI with full data logging and traceability streamlines operation and supports traceable bioprocess workflows.
Built for Today’s Biotech R&D
Strain & Media Screening
Run parallel comparisons of strains, carbon sources, and feed strategies to identify optimal conditions faster.
Biomass Production
Reliable cultivation of bacteria, yeasts, fungi, and cell cultures for research and small-scale production.
Food-Grade Fermentation
Enzymes, probiotics, starter cultures, and functional ingredients for food and beverage R&D.
Industrial Biotechnology
Production of metabolites, organic acids, bioethanol, and other value-added compounds.
Pharma & Cosmetic R&D
Development of active ingredients, proteins, peptides, and bioactive compounds under controlled conditions.
Academic Research
Kinetics studies, kLa characterization, and process scale-up experiments in university and institute labs.
Engineered to Spec
| Configuration | Dual-tank, parallel or independent operation |
|---|---|
| Working Volume | 0.25 L to 10 L per vessel |
| Agitation Range | 50 to 2000 rpm, accuracy ±1 rpm |
| Temperature Control | Accuracy ±0.1 °C |
| Monitoring | pH, dissolved oxygen (DO), temperature, agitation |
| Dosing Pumps | Peristaltic pumps for acid, base, antifoam, and feed |
| Control Interface | Color touchscreen HMI with data logging and traceability |
| Applications | Microbial, yeast, fungal, plant cell, and mammalian cell culture |
| Footprint | Compact benchtop design, suitable for pilot labs |
Frequently Asked Questions
Can the two vessels run different processes at the same time?
Yes. Each vessel has its own control loop for pH, DO, temperature, and agitation, so the two tanks can run independent recipes, different strains, or parallel comparisons in the same experiment.
What working volumes are supported?
The dual-tank system supports working volumes from 0.25 L to 10 L per vessel, making it suitable for early-stage screening as well as pilot-scale process optimization.
Is the system suitable for mammalian cell culture?
Yes. The platform supports mammalian, insect, plant, and microbial cell culture workflows. The low-shear impeller options and precise DO control make it well suited for sensitive cell lines.
Does the system support data logging and traceability?
All process parameters are continuously logged through the color touchscreen HMI, with export options for downstream analysis and traceability documentation.
How is the platform maintained and cleaned?
Vessels, piping, and seals are designed for easy disassembly and sterilization. The system is compatible with standard autoclave and clean-in-place workflows used in modern biotech labs.
Configure the Right Dual-Tank System for Your Process
Talk to a BAILUN bioreactor specialist about vessel sizes, sensor packages, and integration with upstream and downstream equipment.
