Features
l Simultaneously support 2~6 glass vessels, and equipped with a 10″ touch screen.
l The volume of each vessel is 1~10L, which can be customized freely.
l Single-wall glass vessel with electric heating or double-wall glass vessel with jacketed water circulation can be selected.
l Floor stand multiple bioreactor for optional.
l Each vessel is connected with separate sensor and 4 peristaltic pumps to achieve individual control.
l Each vessel can be disassembled for sterilization.
l The controller communicates with control system for accurate and reliable measurement and control.

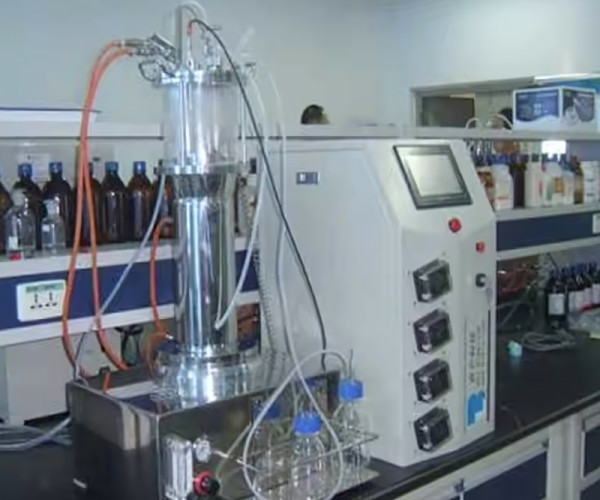

bio fermenter
Control System
l With mature, stable, universal Siemens PLC control system to realize automatic control.
l With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, overlimit alarm, etc.
l With USB interface, and data can be copied directly by USB.
l Running modes:
Manual control: You can open valve or set the percentage of valve opening.
Automatic control: You can select continuous or PID control the switch.
Sequence control: The control of all parameters can be pre-set at least 10 control sections.
Automatic segmentation remotely control: PC control.
Related control: Rotating speed & dissolved oxygen, gasing & dissolved oxygen, feeding & pH, etc.
